Honzo DL

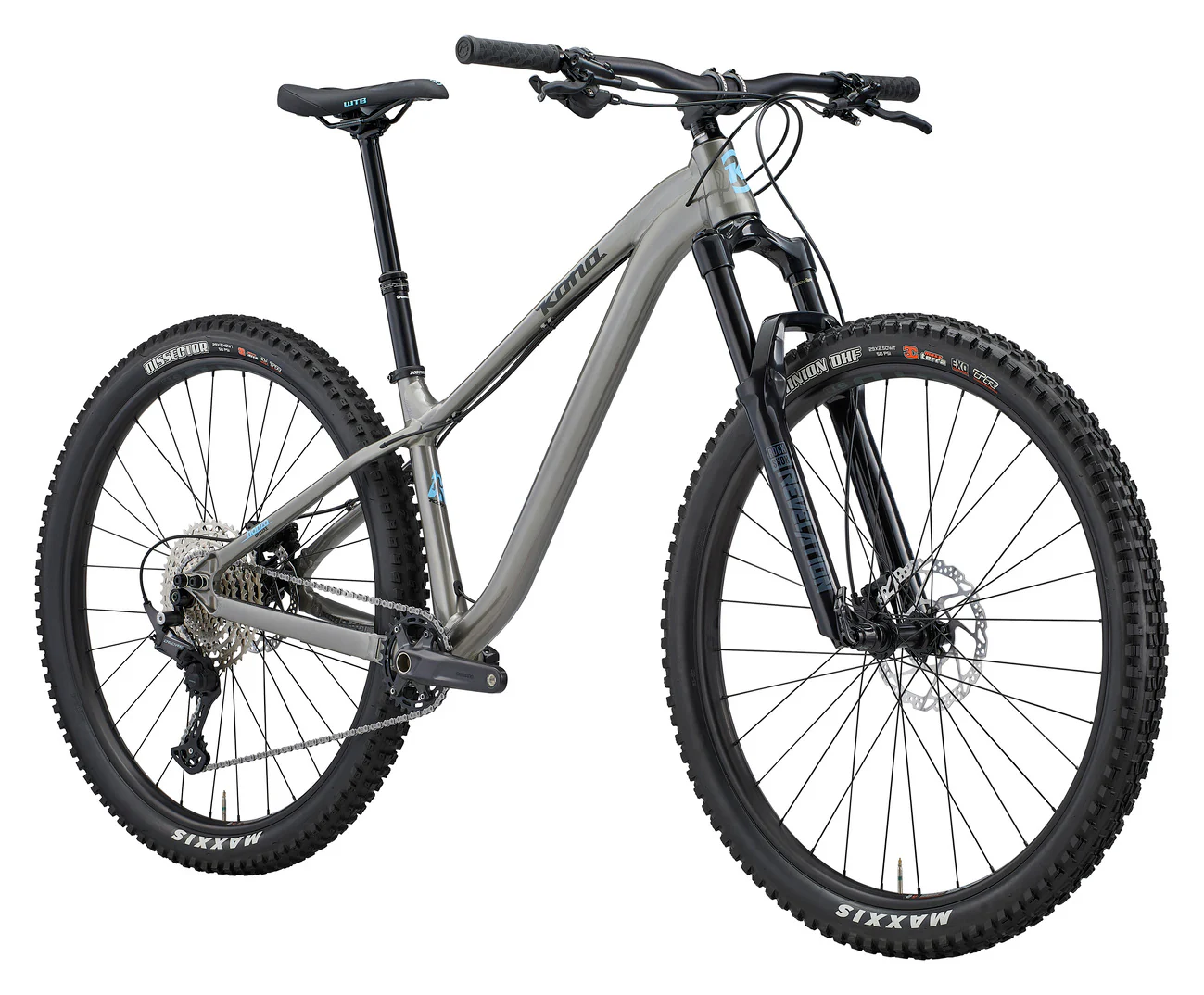

For the hardtail enthusiast, the Honzo DL is a quintessential bike to have in your quiver. Featuring an aluminum frame with geometry derived from the Process 134 it’s ready to rip up and down the trails. A short seat tube allows you to run a longer dropper post, and adjustable dropouts allow you to run the bike geared or as a single speed. Sitting squarely between the Honzo and the Honzo ESD – the Honzo DL is the all-round hardtail for any location.

SPECIFICATIONS

SRAM Build:

Frame Material	Kona 6061 Aluminum Butted
Sizes	S, M, L, XL
Rear Shock	n/a
Fork	RockShox Revelation RC DebonAir 140mm Tapered 110mm
Crankarms	SRAM NX Eagle DUB
Chainrings	30t X-Sync Eagle
Bottom Bracket (B/B)	SRAM DUB PF92
Pedals	n/a
Chain	SRAM SX-Eagle
Cassette	SRAM NX-Eagle 11-50t 12spd
Chainguide	n/a
Front Derailleur	n/a
Rear Derailleur	SRAM NX-Eagle
Shifters	SRAM GX-Eagle
Brake Calipers	SRAM Level T
Front Brake Rotor	SRAM Centerline 180mm
Rear Brake Rotor	SRAM Centerline 160mm
Brake Levers	SRAM Level T
Headset	FSA No.57B
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35
Seatpost	TranzX Dropper +RAD Internal 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	WTB Volt
Front Hub	Formula 110x15mm
Rear Hub	Formula 148x12mm
Spokes	Stainless Black 14g
Rims	WTB ST i30 TCS
Front Tire	Maxxis Minion DHF EXO TR 3C 29x2.5" WT
Rear Tire	Maxxis Dissector EXO TR 3C 29x2.4" WT
Paint Color	Gloss Metallic Grey w/ Charcoal & Cyan Decals



Shimano Build:

All specifications are subject to change without notice

GEOMETRY (mm)
