Moterra Neo 3
From the high mountains to your local loops, this e-MTB will take you to a whole new level. Agile and quick on the climbs, stable and composed on even the nastiest descents, it makes the easy trails fun, and the hard trails electrifying. It’s the kind of machine that makes you lust for the next ride.
Breaking Boundaries
A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.
Where it thrives:
Challenging trails, Up and down hills, Out in the elements
What it's built for:
Handling, Traction, Efficiency, Durability
Highlights
- Proportional Response Tuned SmartForm Alloy frame / RockShox Yari RC fork, 150mm travel
- Bosch SmartSystem - 750wh battery & Performance CX motor
- Shimano XT/Deore 12-speed drivetrain

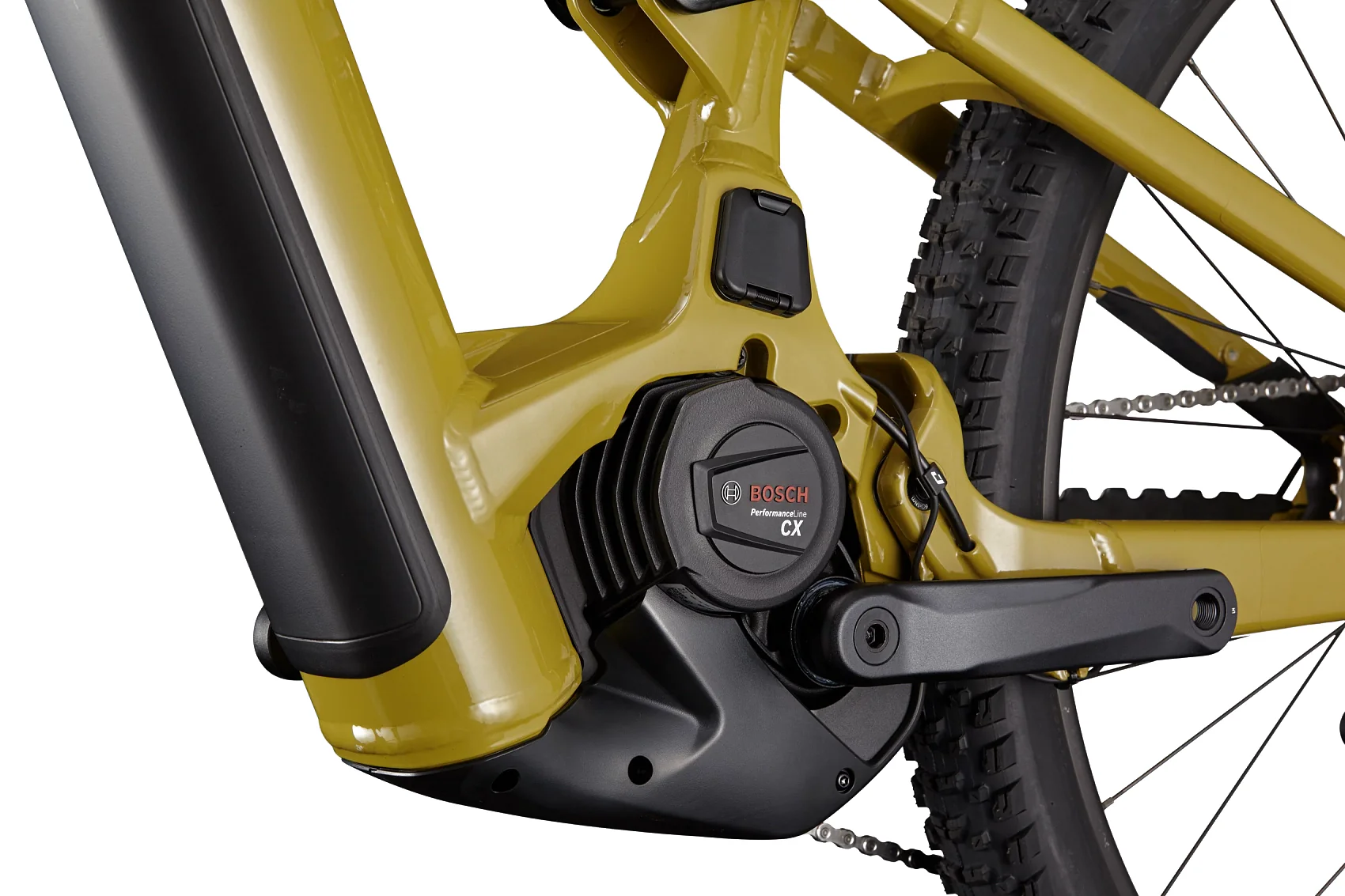

Powered By Bosch
Bosch's most powerful eMTB drive unit, the Performance Line CX, delivers an unreal riding experience. With 85Nm of available torque, it can boost your output by up to 340% in a completely natural, intuitive-feeling way. This is e-mountain bike power at its best.
750Wh Battery
Go longer. Do more laps. Explore the furthest peaks. With the largest battery Bosch makes, range anxiety is a thing of the past. Charge it on the bike, or remove it easily for off-bike charging.
Proportional Response Suspension
Riders come in all sizes, but our Proportional Response Suspension is the only design that addresses this pretty obvious fact. Each size frame gets its own custom suspension kinematics - different mounting points, links and leverage ratios - for truly size-specific suspension performance. Better traction, more efficient pedaling, and more active suspension under braking for every rider.
Protection
To protect the motor and battery from damage, Moterra features a sealed battery cover and a burly, trials-style skid plate.
Specifications
| Component | Details |
|---|---|
| Frame | Moterra, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18mm two-bolt kickstand mount, integrated rear rack mounts |
| Fork | RockShox Yari RC, 150mm, 15x110mm Boost, 44mm offset |
| Headset | Integrated Sealed Bearing, 1-1/8" - 1.5" |

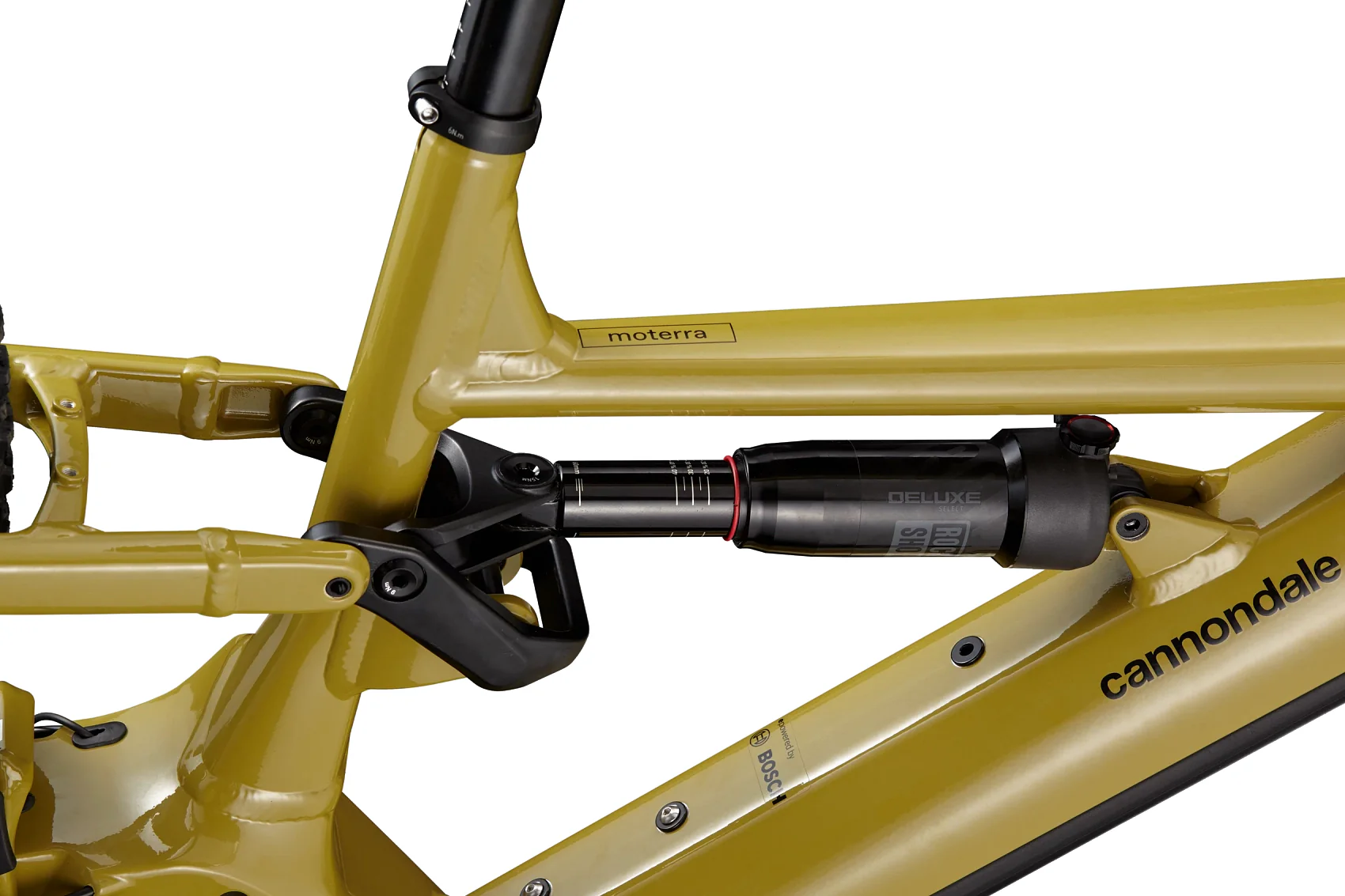

| Rear Shock | RockShox Deluxe Select, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Drive Unit | Bosch Performance Line CX 250W |
| Battery | Bosch PowerTube, 750Wh |
| Charger | Bosch 4A |

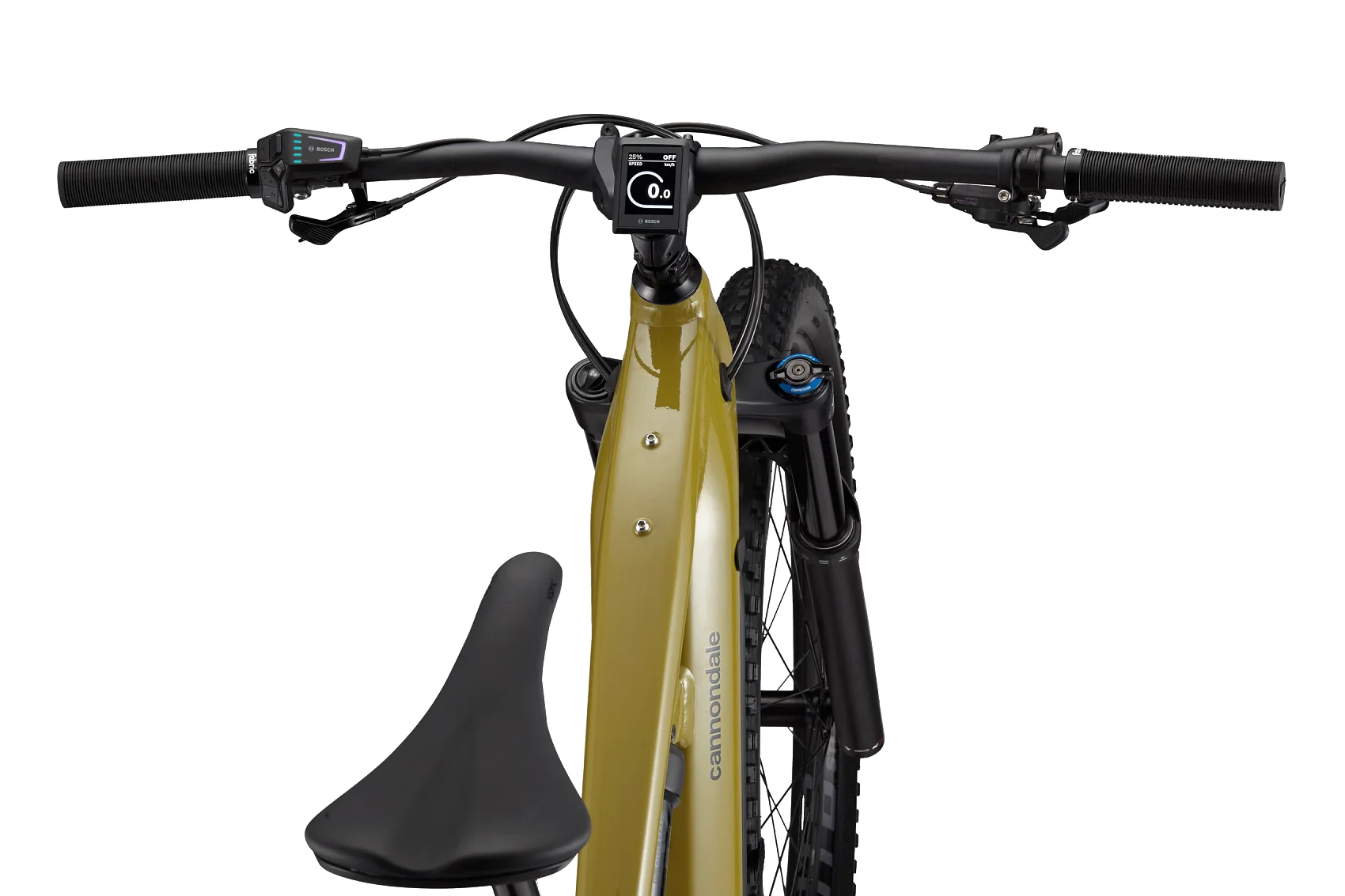

| Display | Bosch Kiox 300 w/ LED remote |
| Certifications | UL 2849 |

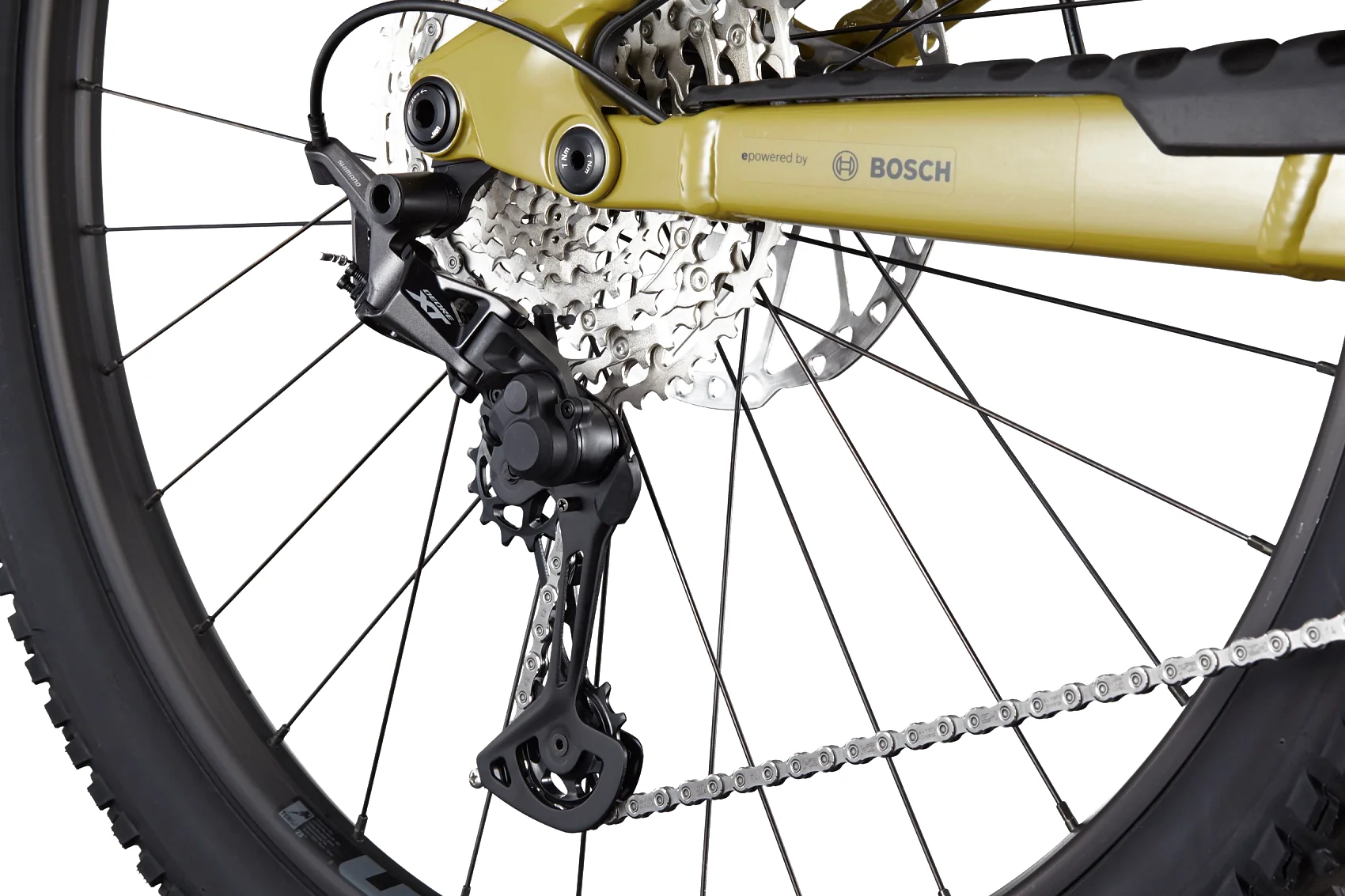

| Rear Derailleur | Shimano XT |
| Shifters | Shimano Deore M6100, 12-speed |
| Chain | Shimano Deore 6100, 12-speed |
| Crank | FSA Bosch E-bike, 160mm, 34T, 55mm chainline |
| Rear Cogs | Shimano Deore M6100, 10-51T, 12-speed |
| Brakes | Shimano MT420 4-piston hydraulic disc, 203/203mm rotors |
| Brake Levers | Shimano MT401 hydraulic disc |
| Rims | WTB ST i30 TCS, 32h, tubeless ready |
| Spokes | Stainless Steel, 14g |
| Tire Size | 2.6" |
| Wheel Size | 29" |
| Hubs | (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle |
| Front Tire | Maxxis Minion DHF, 29x2.6", EXO, tubeless ready |
| Rear Tire | Maxxis Rekon, 29x2.6" (27.5x2.6" for size Small), EXO, tubeless ready |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 0° |
| Grips | Fabric FunGuy |
| Saddle | Fabric Scoop Shallow Sport, steel rails |
| Seatpost | TranzX dropper, internal routing, 31.6, 130mm (S), 150mm (M-XL) |
| Extras | Pre-installed light cable |
| Weight | 51 lbs |
Geometry
