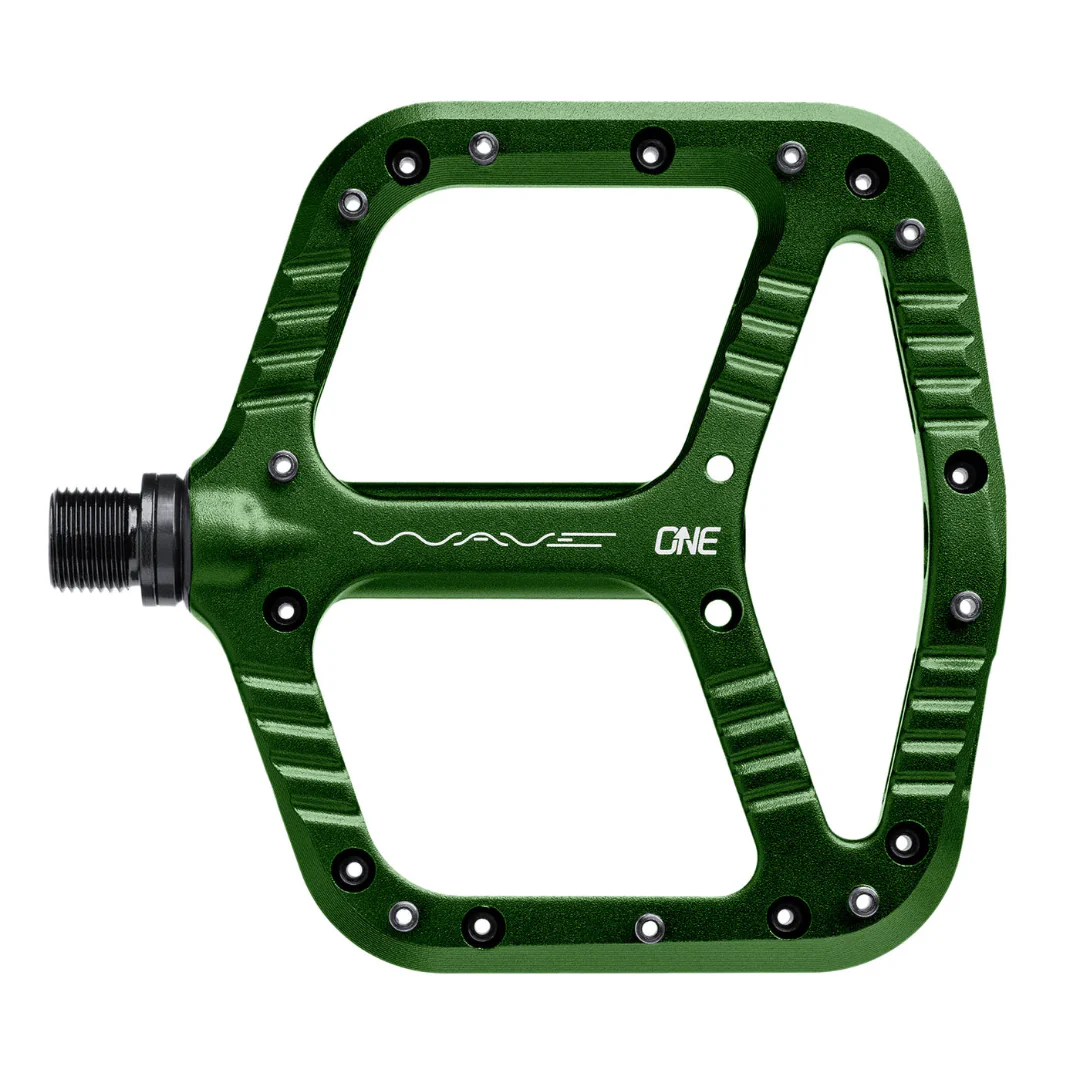

Wave Pedals

Get ultimate grip and bike control with our innovative Wave profile.

Most flat pedal profiles are either convex or concave. Wave is a patented hybrid convex/concave shape that promotes an aggressive heels-dropped riding position and gives you a more natural pedal stroke when seated. With Wave, your foot is being held by the shape of the pedal - not just the pins.

It’s time to ride the Wave.

Specifications

• Weight: 355g (Pair)
• Thickness: Axle 14.2mm / Edges 11.5mm
• Size: 107mm x 110mm (W x L)
• Bearing configuration: Inboard igus™ Bushing and 3x outboard cartridge bearings
• Body: Forged and CNC’d 6061 Aluminum Body
• Axle: Chromoly Steel with Black ED coating
• Pins: M4 Hollow Pin 10 x pins per side (self-cleaning hex through hole)
• Colours: Black, Red, Dark Green, Dark Blue, Orange, Purple, Grey, Bronze

What's in the Box

• 2x Wave Pedals (1x Left, 1x Right)
• 9x Installed M4 hollow threaded pins per side (36x pins total)
• 10x Spare/Uninstalled M4 hollow threaded pins
• 1x Pedal Bearing Nut Tool



Things You Should Know

Convex + Concave = Wave: The front half of the pedal has a concave profile that hugs the ball of your foot for unmatched grip. The back half of the pedal is sloped to promote an aggressive heels-down foot position for more power and control.

Angled Pins: Because the Wave design naturally encourages your heels to drop, the pins are installed at an angle to be vertical when riding. This leverages the Wave profile and increases grip - without the need for longer pins.

DH-Rated Axle: The Wave pedal uses a proven axle, bushing and bearing configuration for improved reliability — strong enough for all types of riding.

2 year manufacturer warranty.
