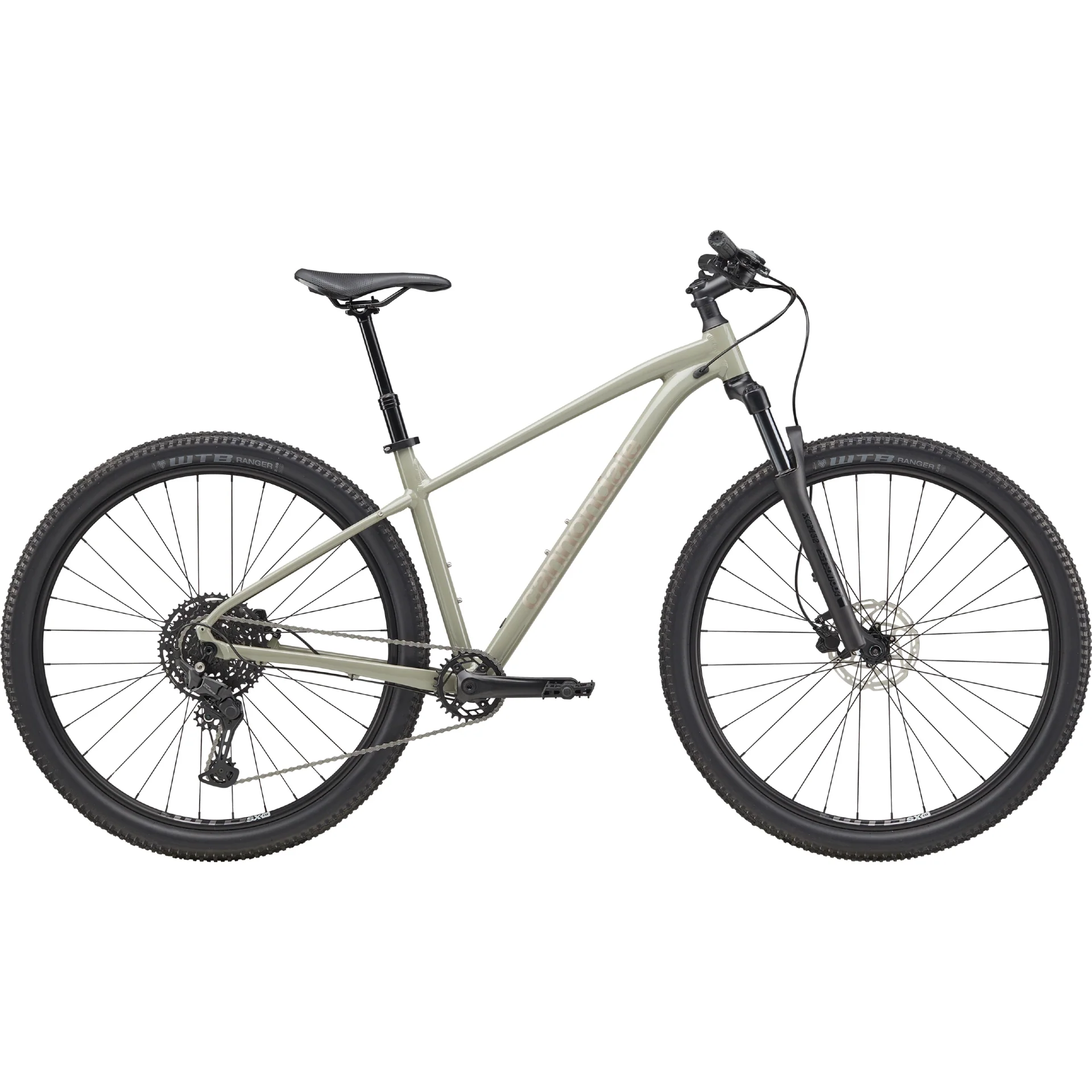

Trail 1

Time to Level Up!

The Cannondale Trail is your first-class upgrade to next-level mountain biking—engineered for fun by a brand trusted by Champions.

Trail 1 blends Cannondale’s 50 years of alloy expertise with modern trail capability. The SmartForm C3 alloy frame delivers a ride that’s light and responsive, while the SR Suntour XCM32 fork with 100mm travel (80mm on XS and Small sizes) takes care of the bumps so you can focus on the fun. Shimano’s CUES 10-speed drivetrain makes shifting smooth and reliable, and Tektro hydraulic disc brakes bring confidence to every descent. With a 130mm dropper post for instant seat adjustments, Trail 1 is proof that decades of innovation can deliver first-class performance, one ride at a time.

Specs

Frame	Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount port, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
Fork	SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
Headset	Semi-Integrated, 1-1/8"

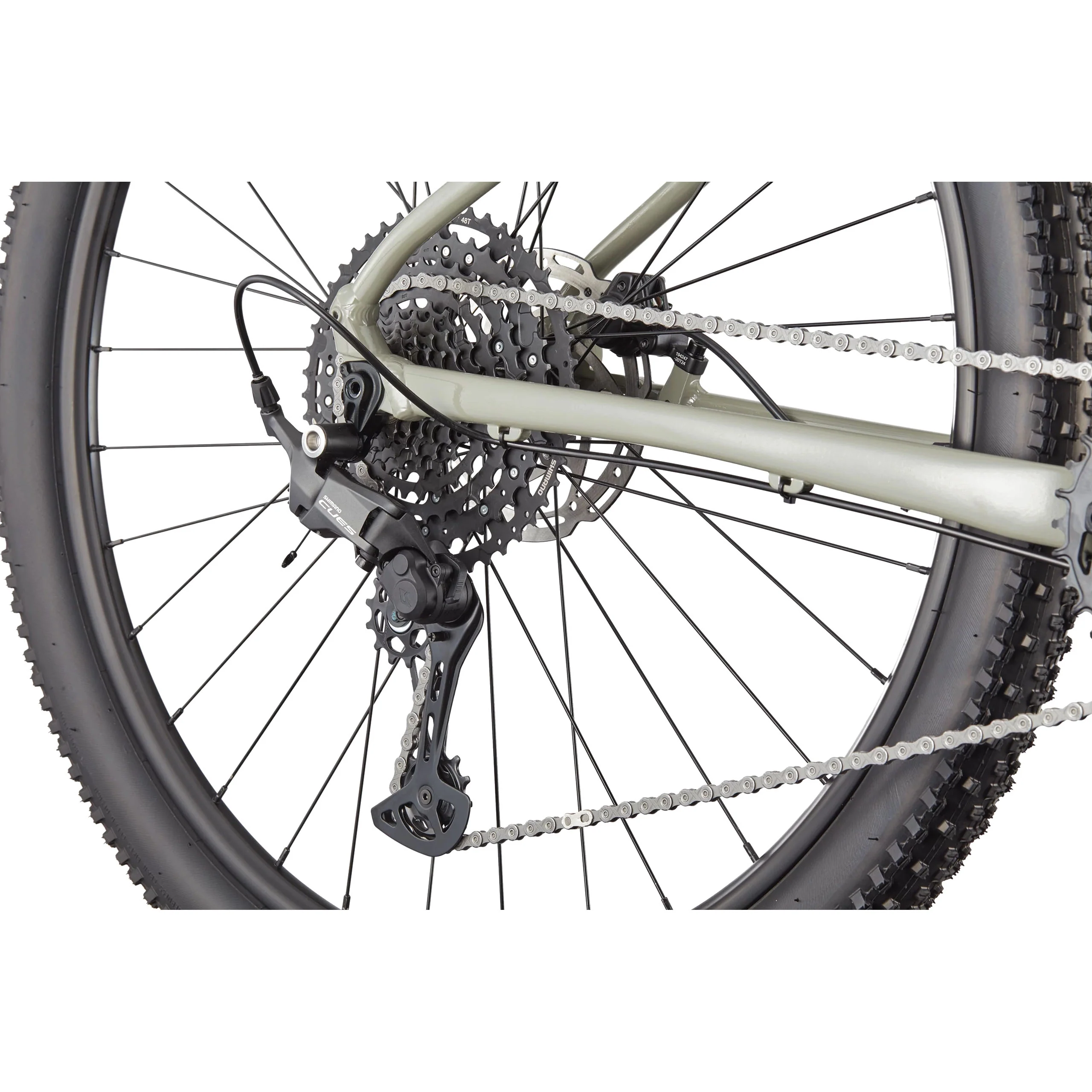

Rear Derailleur	Shimano CUES U6000
Shifters	Shimano CUES U6000, 10-speed
Chain	KMC X10, 10-speed

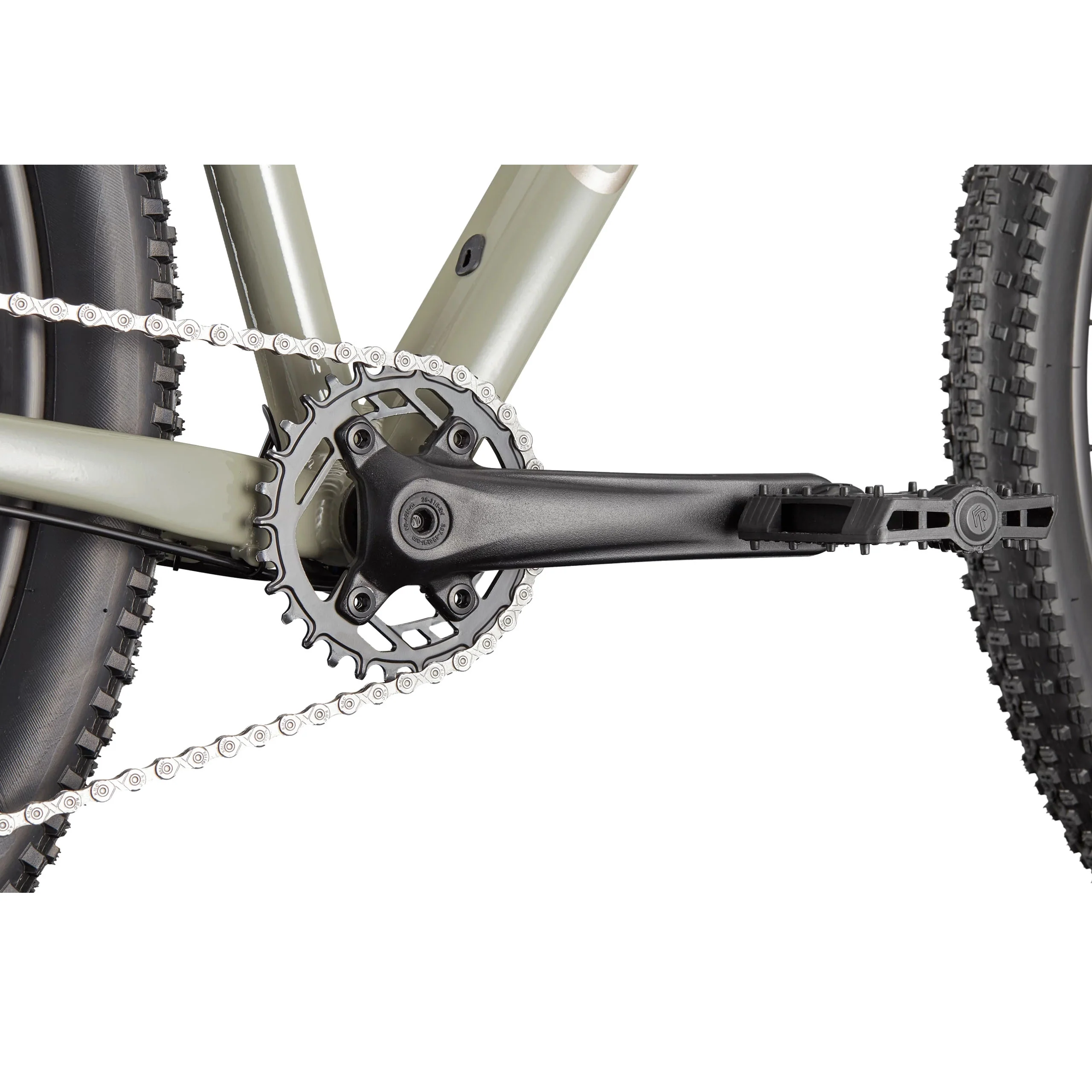

Crank	Prowheel, Charm 30T
Rear Cogs	Shimano CUES, 11-48, 10-speed
Bottom Bracket	ProWheel, square taper

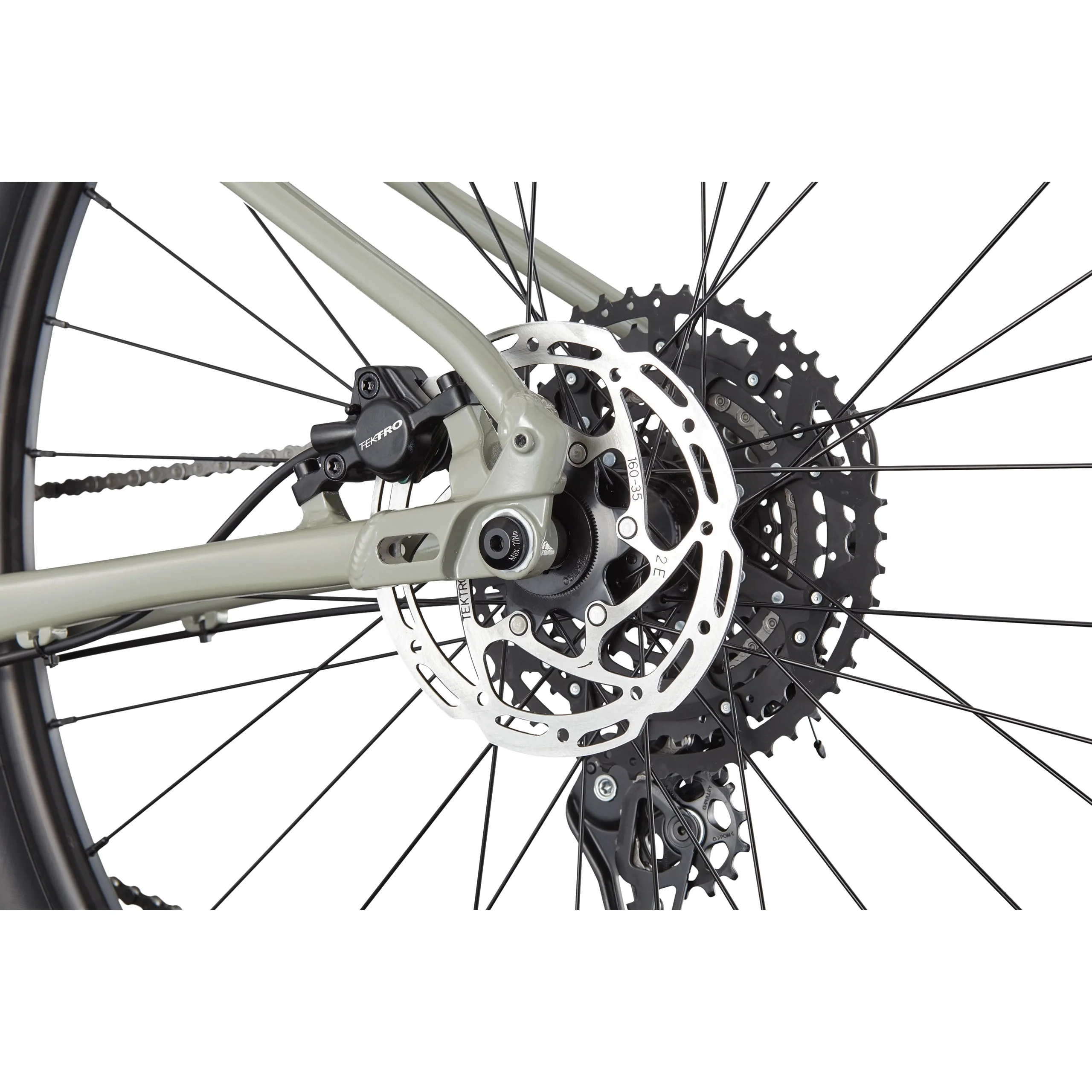

Brakes	Tektro M275 hydraulic disc, 160/160mm rotors
Brake Levers	Tektro hydraulic disc
Front Hub	Shimano TC500, 15x110mm
Rear Hub	Shimano TC500, 12x142mm
Rims	WTB SX19, 32h
Spokes	Stainless Steel, 14g
Tire Size	2.25
Wheel Size	27.5 / 29
Tires	Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI

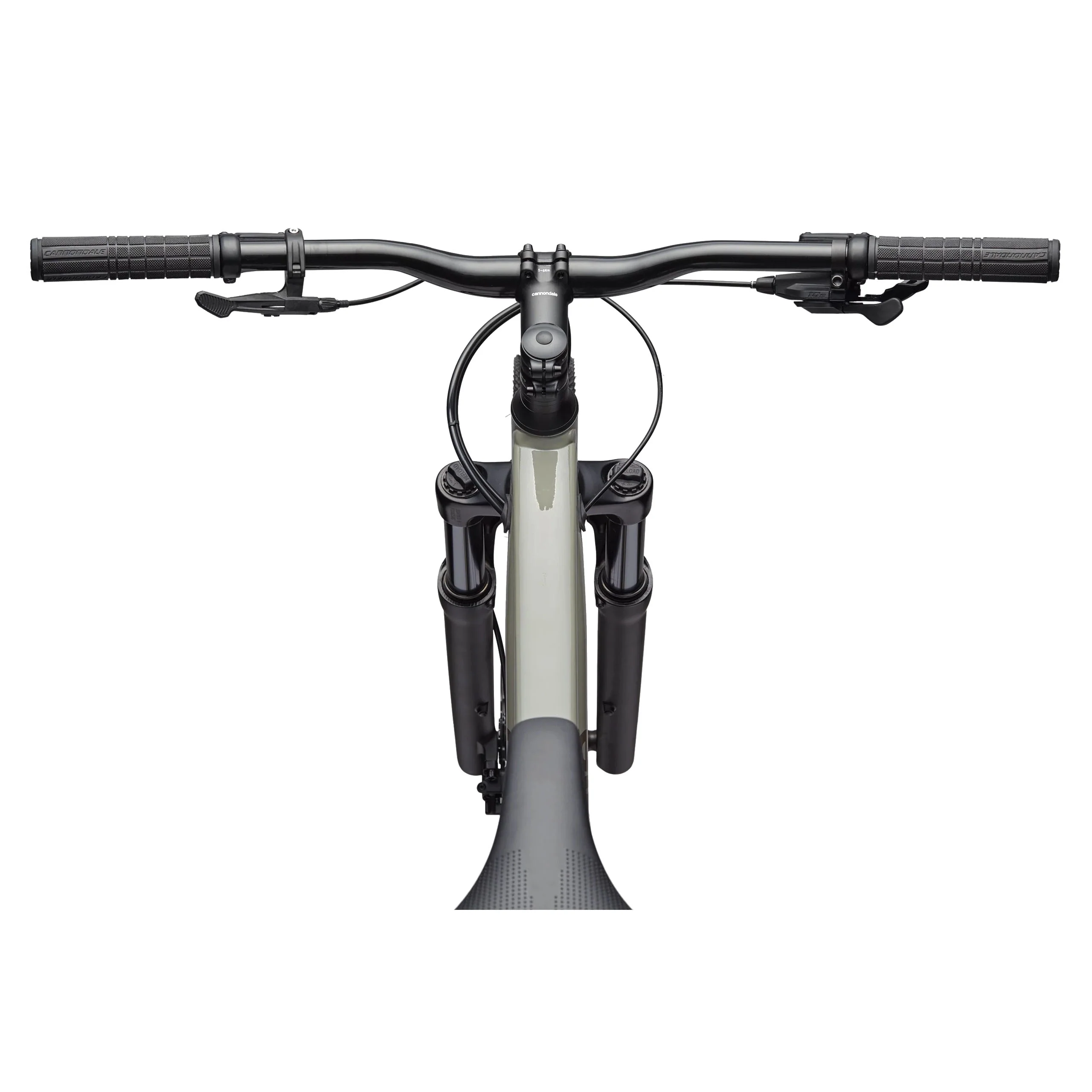

Handlebar	Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Stem	Cannondale 4, 6061 Alloy, 31.8, 6°
Grips	Cannondale
Saddle	Cannondale Trail
Seatpost	JD Dropper, internal routing, 31.6, 130mm
