Process 153 CR/DL GX AXS

Combining uncompromising performance with legendary toughness, this is the bike that the likes of Caleb Holonko rely on to define the edge of what’s possible. Top tier, super-tunable RockShox suspension is paired with the uncluttered precision of SRAM’s AXS drivetrain for a surefooted magic carpet ride regardless of terrain or conditions. DT Swiss hubs keep the wheels rolling smooth for the long haul. Flip-chip convenience lets you choose whether those smooth rolling wheels are 29ers or a mullet setup. Bombproof carbon fiber construction ensures peace of mind and provides deep dropper extension for maximum steezability. Find your limits. Then demolish them.

Specs

BUILD	PROCESS 153 CR/DL - GX AXS
Frame Material	Kona DH Carbon 153mm Travel
Sizes	S, M, L, XL
Rear Shock	RockShox Super Deluxe Ultimate Trunnion
Fork	RockShox Lyrik Ultimate RC2 Charger 2.1 DebonAir 160mm Tapered 110mm Spacing
Crankarms	SRAM X1 Carbon DUB
Chainrings	32t X-Sync Eagle
B/B	SRAM DUB PF92
Pedals	n/a
Chain	SRAM GX-Eagle
Cassette	SRAM XG-1295 10-52t 12spd
Chainguide	n/a
F/D	n/a

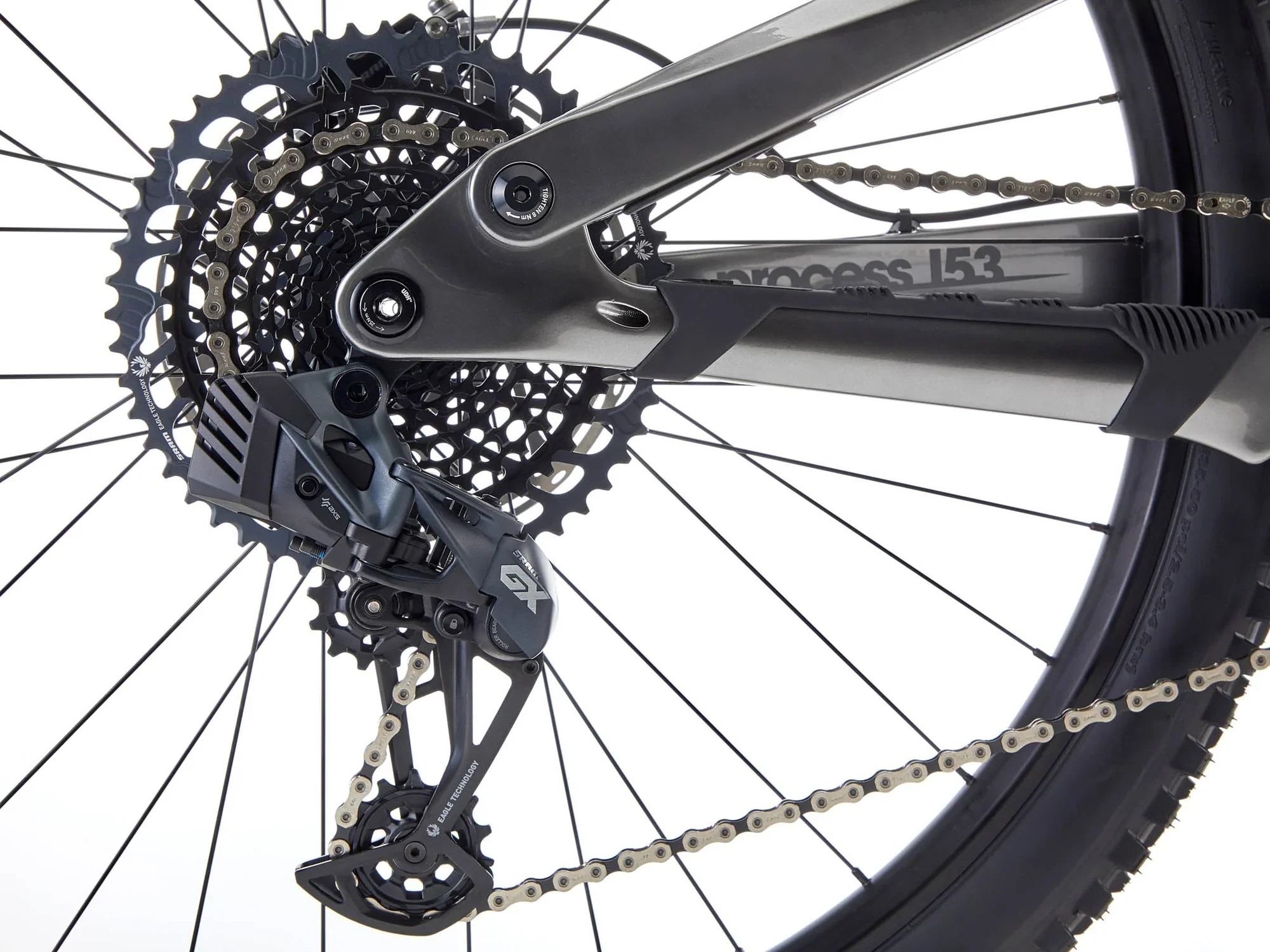

R/D	SRAM GX AXS
Shifters	SRAM GX AXS
Brake Calipers	SRAM G2 RSC
Front Brake Rotor	SRAM Centerline 200mm
Rear Brake Rotor	SRAM Centerline 200mm
Brake Levers	SRAM G2 RSC
Headset	FSA Orbit 1.5 E ZS
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35
Seatpost	Rock Shox Reverb w/1x Remote Lever 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	WTB Volt
Front Hub	DT Swiss 350 110x15mm
Rear Hub	DT Swiss 350 148x12mm
Spokes	Stainless Black 14g
Rims	WTB KOM Trail i30 TCS
Front Tire	Maxxis Assegai EXO+ TR 3C 29x2.5" WT
Rear Tire	Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Paint Color	Gloss Faux Dark Chrome w/ Satin Lead Decals

Geometry

	S	M	L	XL
ST Length	380	380	420	450
TT Length	574	599	628	667
Reach	430	455	480	515
Stack	615	615	625	635
Standover	690	700	710	720
HT Angle (°)	64.5	64.5	64.5	64.5
HT Length	94	94	105	116
ST Angle (°)	76.9	76.9	76.7	76.6
CS Length	435	435	435	435
BB Drop	20	30	30	30
BB Height	345	345	345	345
Wheelbase	1190	1215	1244	1284
Front Center	756	781	811	851
Fork Length	571	571	571	571
Fork Offset	44	44	44	44
