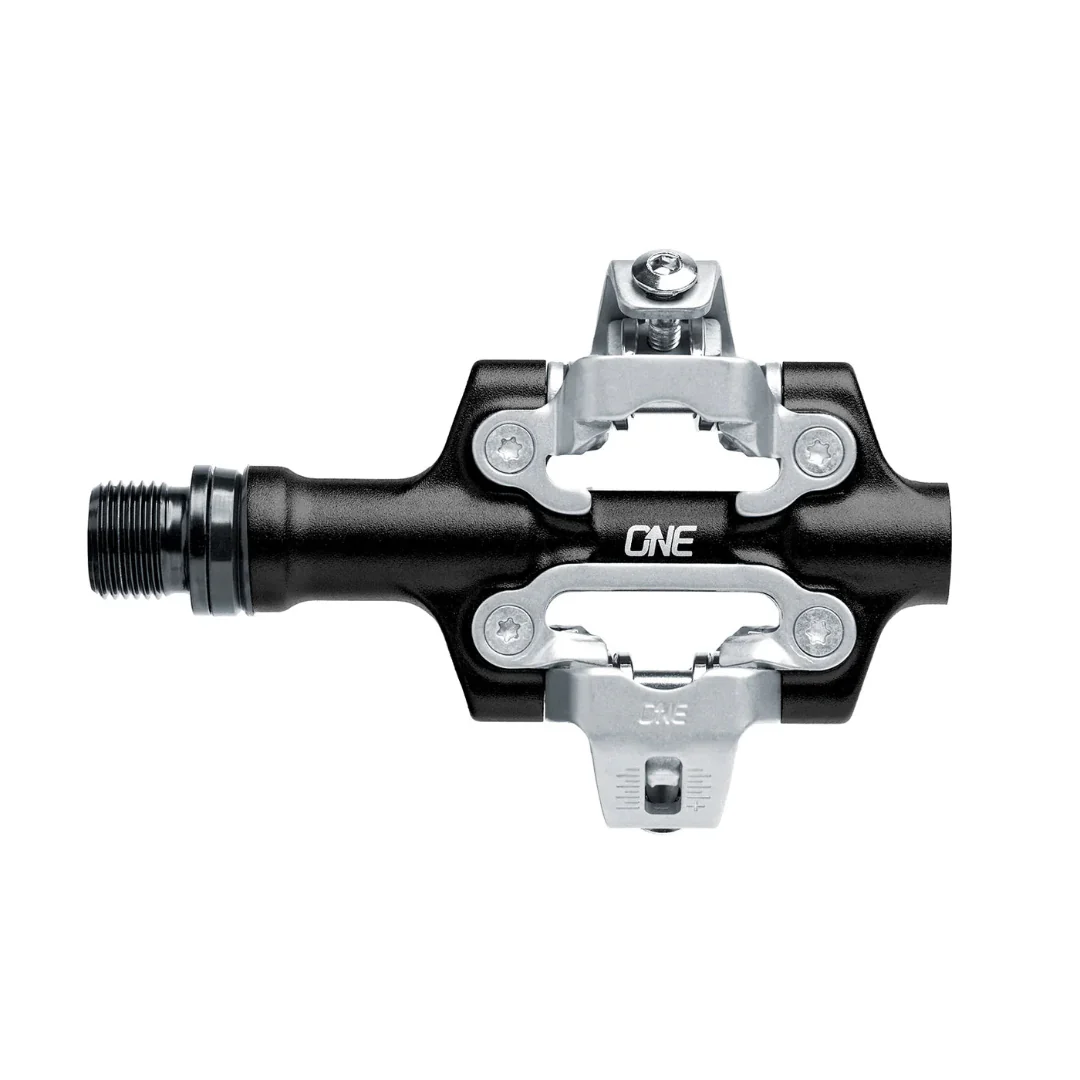

XC Clip Pedal

An ultra-thin, superlight pedal for XC riding and racing. Measuring just 26.8mm and weighing just 303g, XC Clip Pedals are designed for when every gram, and every millimeter, counts. They’re SPD-compatible and available in 6 colours.

Less pedal. More power.

Specifications

• Weight: 303g per pair
• Thickness: 14.4mm (body), 26.8mm (binding)
• Size: 75mm x 68mm (W x L)
• Stance width: 55mm (Center of binding to outside of crank face)
• Float: 5° (12° release angle)
• Cleats: SPD™ Compatible (includes 1mm cleat spacers for shoe fit tuning )
• Bearing configuration: Inboard igus® Bushing and 2x outboard sealed cartridge bearings
• Axle: Chromoly Steel with Black ED coating
• Colours: Black, Dark Green, Dark Blue, Purple, Grey, Bronze

What's in the Box

• 2x XC Clip Pedals (1x Left, 1x Right)
• 2x OneUp Cleats with included hardware
• 2x Cleat Spacers
• 1x Pedal Bearing Nut Tool

Things You Should Know

• Comes with SPD™ compatible cleats and 1mm cleat spacers for shoe fit tuning.

• Included Pedal Bearing Nut Tool allows you to easily disassemble, clean, and grease your axle system.

• Custom, Stainless Steel, SPD™ Compatible Binding offers a locked-in feel with no unwanted play, and works with OneUp's own cleats and Shimano SPD™ cleats.

• 5 degrees of float and 12 degree release angle.

• 2 year manufacturer warranty.

• Wide-range release tension adjustability is secure enough for racers, yet forgiving enough for beginners, with an indicator to easily match the tension on all four bindings.
