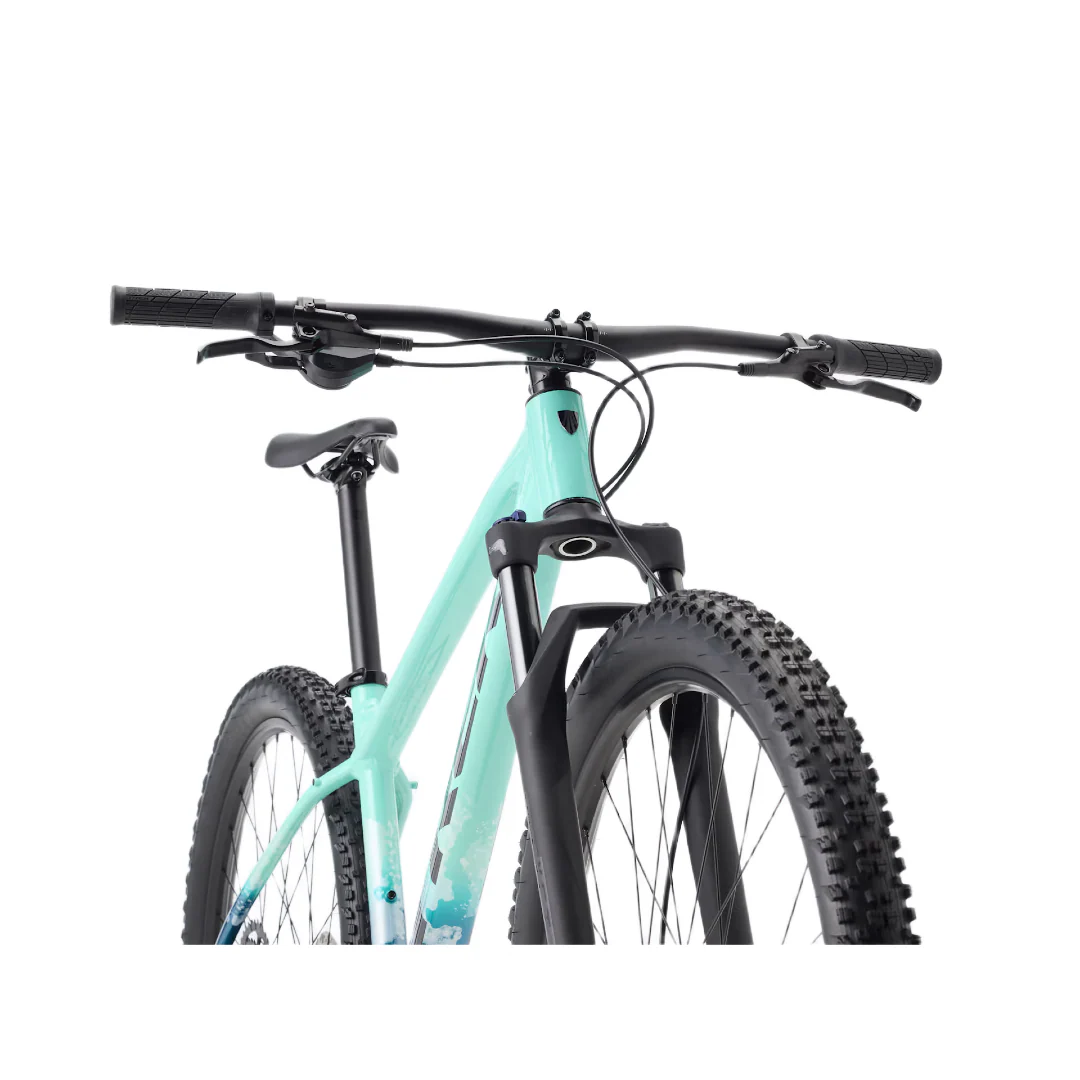

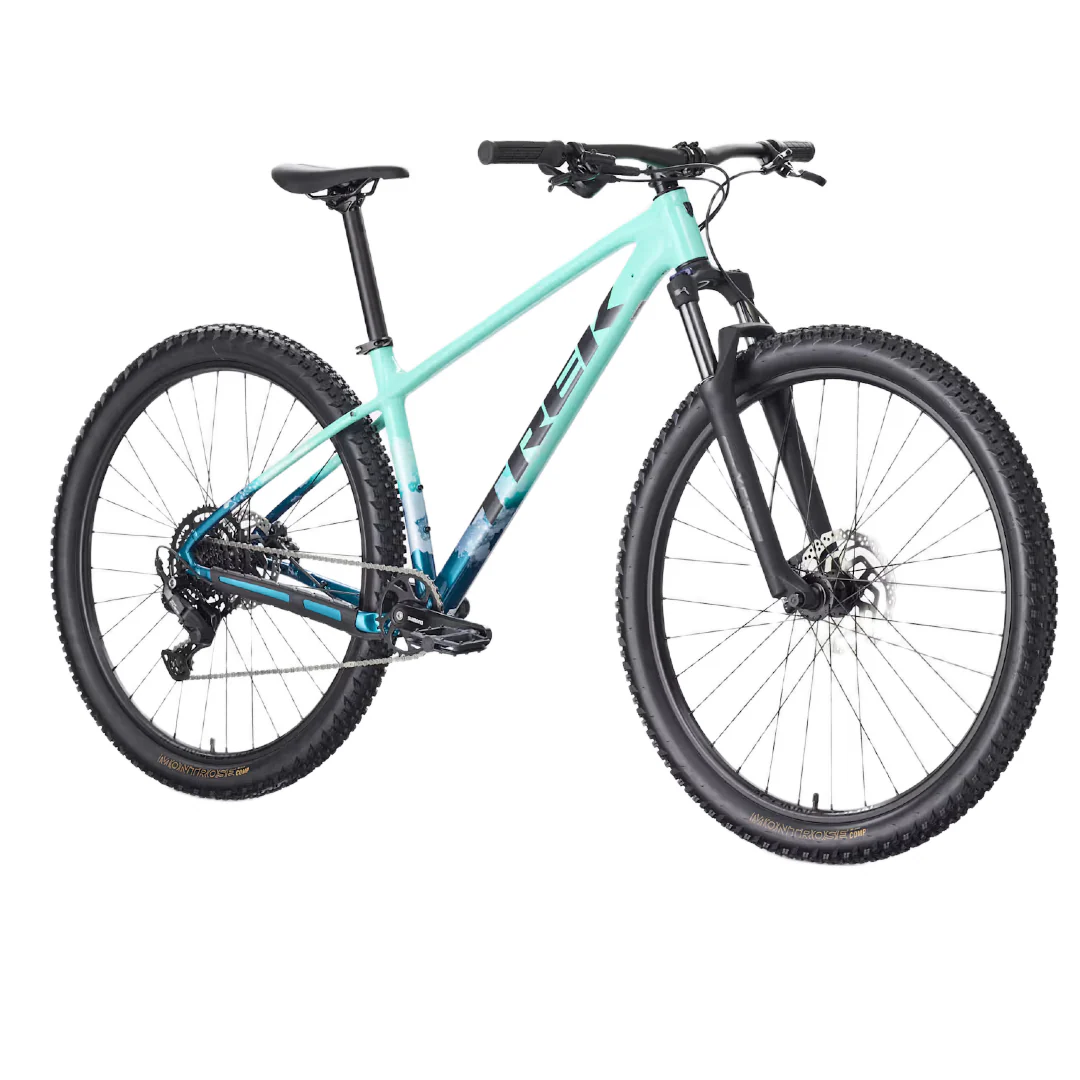

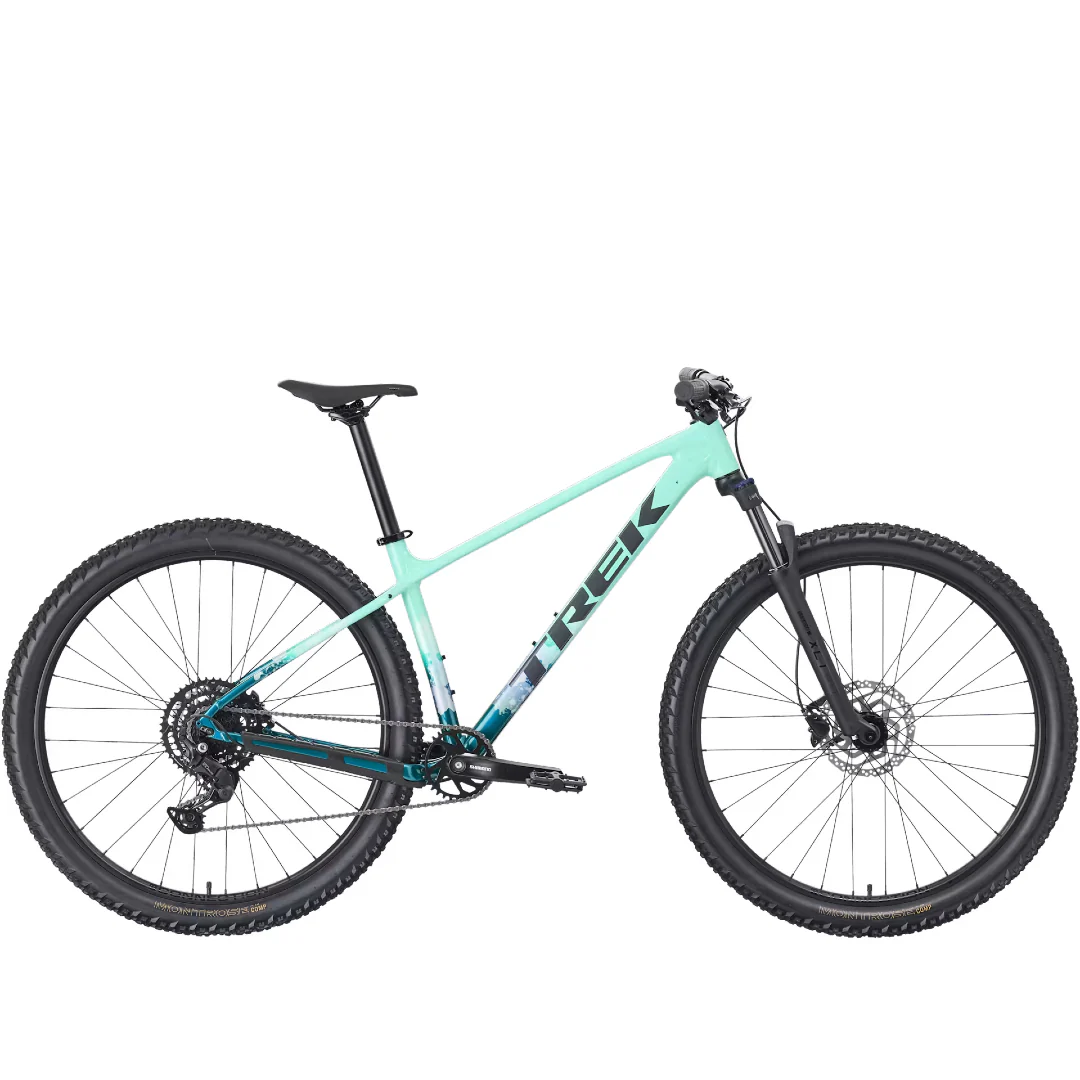

Marlin 5

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Specifications

Frame	XS: Alpha Silver Aluminum, curved top tube, internal derailleur & dropper routing, rack & kickstand mount, 135x5mm ThruSkew. S–XXL: Alpha Silver Aluminum, internal derailleur & dropper routing, rack & kickstand mount, 135x5mm ThruSkew
Fork	XS: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset, 27.5" wheel, 80 mm travel. S: same fork, 27.5", 100 mm travel. M–XXL: same fork, 29" wheel, 100 mm travel
Front Hub	Formula DC-20, alloy, 6-bolt, 100x5 mm
Front Skewer	Trek Thru-Skew
Rear Hub	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Rear Skewer	173x5 mm QR
Rim	Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes	14g stainless steel, black
Tires	XS–S: Bontrager Montrose Comp 27.5×2.4". M–XXL: Bontrager Montrose Comp 29×2.4". Wire bead, 30 TPI
Shifter	Shimano U4000, 9-speed
Rear Derailleur	Shimano CUES U4000
Crank	XS–ML: Shimano CUES U4001, 32T, 52 mm chainline, 170 mm length. L–XXL: Shimano CUES U4001, 32T, 52 mm chainline, 175 mm length
Bottom Bracket	Shimano, 73 mm threaded cartridge, 122.5 mm spindle
Cassette	Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain	Shimano LG500
Pedals	VP-536 nylon platform
Saddle	Bontrager Verse Short, stainless steel rails
Seatpost	XS–M: Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length. ML–XXL: 31.6 mm, 12 mm offset, 400 mm length
Handlebar	XS: Bontrager alloy 690 mm width, 5 mm rise. S: 720 mm width, 15 mm rise. M–XXL: 750 mm width, 15 mm rise
Grips	Trek Line Comp, nylon lock-on
Stem	XS–S: Bontrager Comp, 31.8 mm, 7°, 35 mm length. M–L: 50 mm. XL: 60 mm. XXL: 70 mm
Headset	Semi-integrated, 1-1/8"
Brakes	Shimano MT200 hydraulic disc
Brake Rotors	160 mm (all sizes) + 180 mm listed for M–XXL
Brake Set	Shimano MT200 hydraulic disc
Weight	Size M: 15.10 kg / 33.29 lbs
Weight Limit	300 lb (136 kg) total system weight
