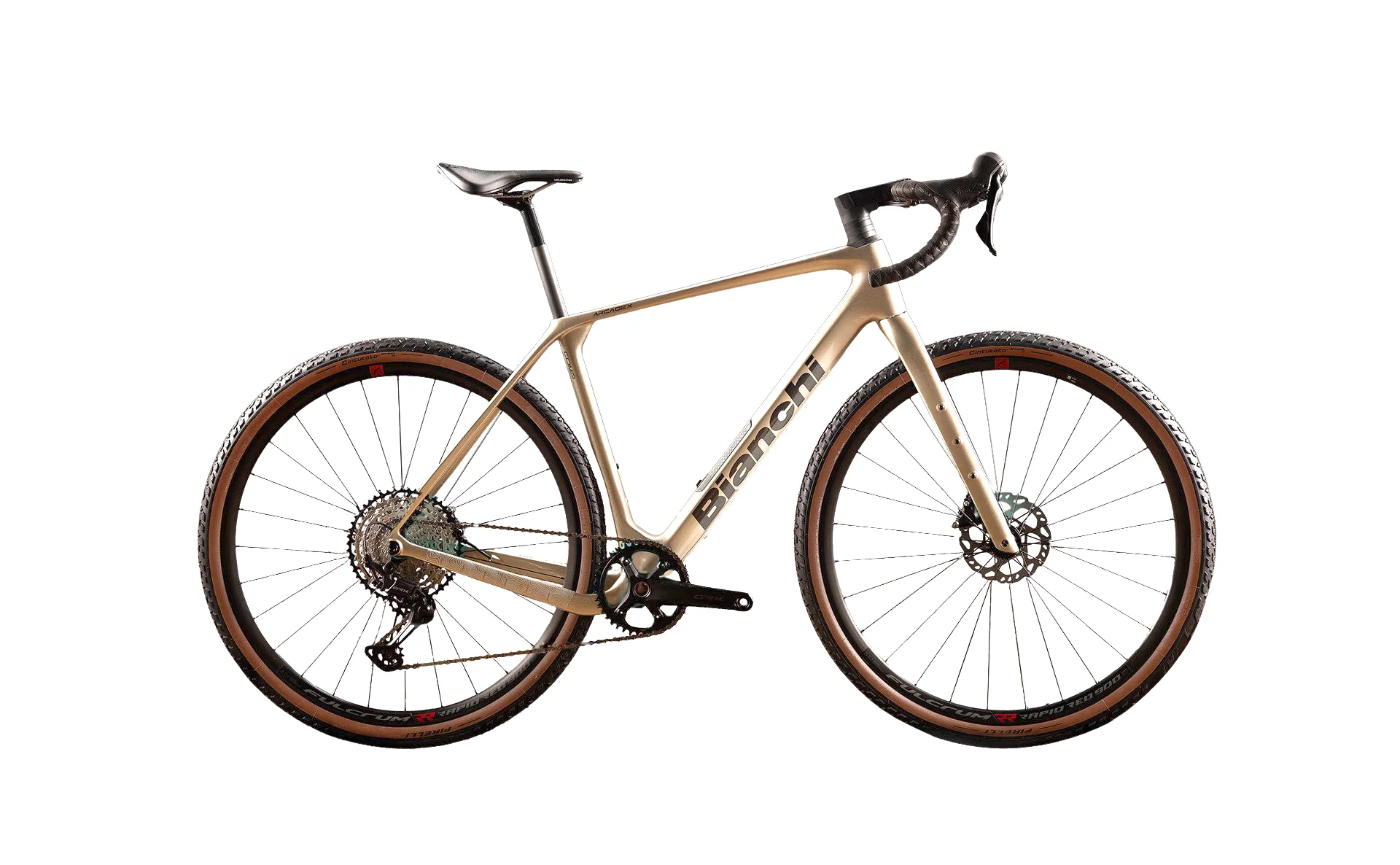

Arcadex Comp GRX 610

The New Arcadex

A capable gravel bike equipped for adventure, bikepacking and discovering new frontiers.

We engineered the Arcadex to take you further. Further outside your usual riding locale. Further into the wilderness. Further beyond your comfort zone. We wanted to design a gravel bike capable of supporting you on the most adventurous rides. That meant devising
new ways to enhance its capabilities, innovative features to augment exploration.
The result is the new Arcadex, an intrepid, rugged adventure machine that will take you further than ever.

Dedicated Frame

The carbon fibre frame of the Arcadex benefits from a dedicated endurance geometry, specifically suited to long distance rides and expeditions that see you in the saddle on
back-to-back days. It is offered in Pro and Comp versions. Both Pro and Comp are spec’d as standard with Velomann integrated cockpit. Both models are also upgradeable with
Bianchi’s fully-integrated monocoque carbon fibre handlebar, developed by Reparto Corse. The Arcadex has clearance for up to 700c x 50mm tires. It can also be run with clip-on fenders/mudguards. The bicycle is rated for ASTM 2 usage on off-road surfaces and all
specifications feature a Mitora 149 H1 saddle to provide the all-day comfort you need for multi-day escapes.

Specs

Frame

Arcadex Comp Disc Brake Brake Mount: Flat Mount 140/160 Bottom Bracket: PressFit 86.5 x Ø41 Rear Axle: Thru-12 (142 mm OLD) Front Derailleur: Non-Compatible Rear Derailleur: SRAM UDH Hanger Max Chainring Compatibility: —

Fork	Bianchi Arcadex Carbon Fork Brake Mount: Flat Mount 140/160 Front Axle: Thru-12 (100 mm OLD) Tire Clearance: 622x42 mm Steerer: 1 1/8” Material: Epoxy SM Carbon Fiber Composite

Headset

Bianchi Custom Acros ICR (Internal Cable Routing) Spacers: 5mm x1, 10mm x3 Headtube Cover: Bianchi Custom Compression Ring: 1.125” Bearings: Angular Contact 42x52x7 (top), 40x52x7 (bottom) + seals

Shifters

Shimano GRX 610 ST/BL-RX610

Rear Derailleur

Shimano GRX 822 RD-RX822 SGS Max Cassette: 51T

Crankset

Shimano GRX 610 FC-RX610-1, 40T Lengths: 170mm (XS/47–SM/51), 172.5mm (MD/55–LG/58), 175mm (XL/61)

Bottom Bracket

Shimano SM-BB72-41B, Press Fit

Chain

Shimano CN-M7100

Cassette

Shimano CS-M7100 12-speed, 11–51T Interface: MicroSpline

Brakes

Shimano Hydraulic BR-RX400

Rotors

Shimano SM-RT70 IceTech Mount: Centerlock Diameter: 160mm (Front & Rear)

Wheels

Fulcrum RapidRed 900 2-Way Fit Ready Rim: Aluminum Alloy, 700C Height: 24mm Inner Width: 22mm

Tires

Pirelli Cinturato™ Gravel M Classic 45-622 Tan Sidewall

Stem	Velomann AICR Alloy, -2° Rise Steerer: 1 1/8” (28.6mm) Bar Clamp: 31.8mm Lengths: 80mm (XS), 90mm (SM), 100mm (MD), 110mm (LG), 120mm (XL)

Handlebar

Velomann Gravel ICR Alloy Flare: 16°

Grips / Tape

Bianchi Hexagon Tape, 2.5mm, Black

Seatpost

Velomann Carbon UD Ø27.2mm Lengths: 300mm (XS), 350mm (SM–XL)

Saddle

Velomann MITORA 149 H2 Cover: Soft Touch Padding: Foam Shell: Nylon Carbon Rails: Steel Size: 250x149mm
